The Jeep 4.0 liter inline-six engine is a legend. Renowned for its reliability and torquey nature, it has powered Jeeps across trails and highways for decades. But for those seeking more power, a stroker build is the ultimate upgrade. Transforming your 4.0 into a 4.5 or 4.6 liter beast unleashes significantly increased horsepower and torque, making your Jeep a formidable force both on and off-road. However, simply slapping a stroker kit into your existing engine isn't enough. To truly maximize the potential of your new engine and ensure its longevity, you'll need to upgrade supporting components. This comprehensive guide will walk you through the essential upgrades needed when building a Jeep 4.0 stroker.

Why Upgrade When Building a Stroker?

Unleash the Beast: Essential Upgrades for Your Jeep 4.0 Stroker

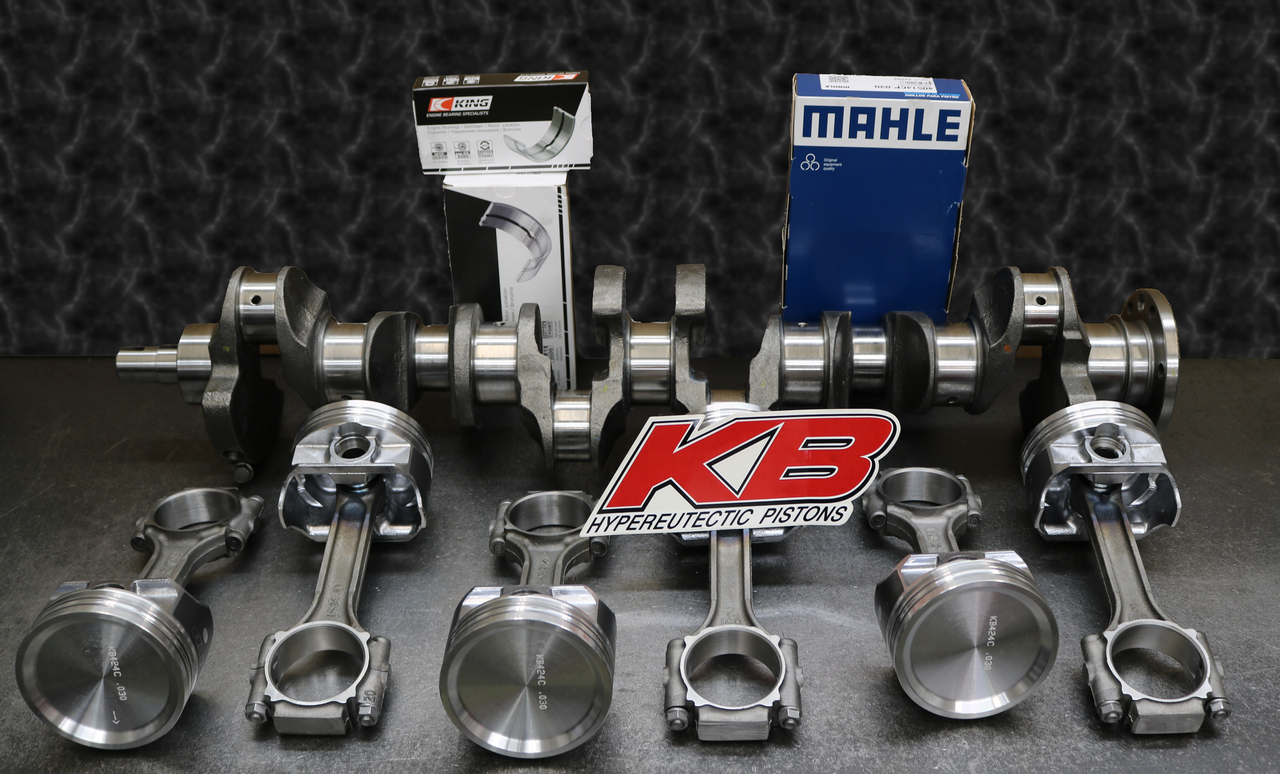

A stroker engine increases displacement by lengthening the stroke of the piston. This increased stroke requires a larger crankshaft and connecting rods, ultimately pushing the engine to its mechanical limits. Without upgrading supporting components, you risk:

• Reduced Reliability: Stock components may not be able to handle the increased stress and strain.
• Suboptimal Performance: Bottlenecks in the intake or exhaust systems can prevent you from realizing the full potential of your stroker.
• Premature Failure: Overstressed parts are more likely to fail, leading to costly repairs.

Therefore, a well-planned upgrade strategy is crucial for a reliable and high-performing stroker build.

Section 1: Fuel System Upgrades - Feeding the Beast

A stroker engine demands more fuel. The stock fuel system, designed for a 4.0 liter engine, will be inadequate, leading to a lean condition that can damage your engine.

• Fuel Injectors: Upgrade to higher-flowing fuel injectors. Aim for injectors rated between 24 lbs/hr and 30 lbs/hr, depending on your desired horsepower and engine management system.
• Fuel Pump: The stock fuel pump may struggle to provide sufficient fuel pressure and volume. Install a higher-flowing fuel pump. Walbro 255 LPH pumps are a popular and reliable choice.
• Fuel Pressure Regulator: Ensure your fuel pressure regulator is functioning correctly. Consider an adjustable fuel pressure regulator to fine-tune fuel delivery.

• Fuel Lines: Inspect your fuel lines for any signs of wear or damage. Consider upgrading to larger diameter fuel lines for improved flow, especially if you're aiming for high horsepower.

Benefits:

• Ensures adequate fuel delivery to prevent lean conditions.

• Optimizes air-fuel ratio for maximum power and efficiency.
• Prevents engine damage caused by fuel starvation.

How-To (Simplified):

1. Research and select the appropriate fuel injectors and fuel pump for your stroker build.
2. Disconnect the negative battery terminal.
3. Relieve fuel pressure.
4. Remove the old fuel injectors and fuel pump.
5. Install the new fuel injectors and fuel pump.
6. Reconnect the fuel lines and electrical connections.
7. Reconnect the negative battery terminal.
8. Test the fuel system for leaks.

Important Considerations:

• Properly tune your engine after installing new fuel components.
• Consider the fuel requirements of your chosen camshaft and cylinder head.
• Consult with a professional tuner for optimal fuel system calibration.

Section 2: Ignition System Upgrades - Sparking the Power

A stronger spark is essential to ignite the increased fuel-air mixture in a stroker engine.

• Distributor: Consider upgrading to a high-performance distributor. HEI distributors are a popular choice for their reliability and increased spark energy.
• Ignition Coil: Upgrade to a higher-output ignition coil. MSD Blaster coils are a common upgrade.
• Spark Plug Wires: Replace your old spark plug wires with high-quality, low-resistance wires.
• Spark Plugs: Use spark plugs with the correct heat range for your stroker engine. Consult with your engine builder or tuner for recommendations.

Benefits:

• Improved combustion efficiency.
• Increased horsepower and torque.
• Reduced misfires.
• Better throttle response.

How-To (Simplified):

1. Research and select the appropriate ignition components for your stroker build.
2. Disconnect the negative battery terminal.
3. Remove the old distributor, ignition coil, spark plug wires, and spark plugs.
4. Install the new distributor, ignition coil, spark plug wires, and spark plugs.
5. Reconnect the electrical connections.
6. Reconnect the negative battery terminal.
7. Set the timing.

Important Considerations:

• Ensure proper distributor phasing.
• Use a quality timing light to accurately set the ignition timing.
• Consider an aftermarket ignition control box for more precise timing control.

Section 3: Cooling System Upgrades - Keeping Things Cool

A stroker engine generates more heat than a stock engine. An upgraded cooling system is crucial to prevent overheating and engine damage.

• Radiator: Upgrade to a larger capacity radiator. Aluminum radiators offer superior cooling performance.
• Electric Fan: Consider replacing the mechanical fan with a high-performance electric fan. Electric fans provide better cooling at low speeds and can be controlled by a thermostat.
• Water Pump: Install a high-flow water pump.
• Thermostat: Use a thermostat with the correct temperature rating for your stroker engine.
• Hoses: Replace old or worn hoses with new, high-quality hoses.

Benefits:

• Prevents overheating.
• Extends engine life.
• Maintains optimal engine temperature for performance.

How-To (Simplified):

1. Research and select the appropriate cooling system components for your stroker build.
2. Drain the coolant.
3. Remove the old radiator, fan, water pump, thermostat, and hoses.
4. Install the new radiator, fan, water pump, thermostat, and hoses.
5. Fill the cooling system with coolant.
6. Bleed the cooling system to remove air pockets.

Important Considerations:

• Ensure proper coolant mixture.
• Consider an auxiliary transmission cooler if you have an automatic transmission.
• Monitor engine temperature closely, especially during hot weather or heavy towing.

Section 4: Exhaust System Upgrades - Letting it Breathe

A restrictive exhaust system can significantly limit the performance of your stroker engine.

• Headers: Upgrade to a set of headers with larger diameter primaries and collectors.
• Catalytic Converter: Consider a high-flow catalytic converter.
• Muffler: Upgrade to a performance muffler with a less restrictive design.
• Exhaust Piping: Increase the diameter of your exhaust piping.

Benefits:

• Improved exhaust flow.
• Increased horsepower and torque.
• Reduced backpressure.
• Enhanced engine sound.

How-To (Simplified):

1. Research and select the appropriate exhaust system components for your stroker build.
2. Disconnect the negative battery terminal.
3. Remove the old exhaust manifold, catalytic converter, muffler, and exhaust piping.
4. Install the new headers, catalytic converter, muffler, and exhaust piping.
5. Reconnect the exhaust system to the engine and chassis.
6. Reconnect the negative battery terminal.

Important Considerations:

• Check local emissions regulations before installing aftermarket exhaust components.
• Ensure proper exhaust system sealing to prevent leaks.
• Consider a cat-back exhaust system for a complete exhaust upgrade.

Section 5: Engine Management System (EMS) Upgrades - Controlling the Power

The stock engine management system may not be able to properly control the increased power of your stroker engine.

• ECU Tuning: This is the most critical upgrade. A custom tune is essential to optimize fuel delivery, ignition timing, and other engine parameters for your specific stroker build.
• Aftermarket ECU: Consider an aftermarket ECU for more advanced tuning capabilities and features.

Benefits:

• Optimized engine performance.
• Improved fuel efficiency.
• Enhanced drivability.
• Protection against engine damage.

Important Considerations:

• Seek a reputable tuner with experience tuning Jeep 4.0 stroker engines.
• Consider data logging to monitor engine performance and identify potential issues.
• Be prepared to spend time and money on tuning to achieve optimal results.

Section 6: Transmission and Drivetrain Upgrades - Handling the Torque

The increased torque output of a stroker engine can put a strain on your transmission and drivetrain.

• Transmission: Consider rebuilding or upgrading your transmission with stronger components.
• Clutch: Upgrade to a heavier-duty clutch if you have a manual transmission.
• Driveshafts: Inspect your driveshafts for any signs of wear or damage. Consider upgrading to stronger driveshafts if necessary.
• Axles: Strengthen your axles, especially if you plan on off-roading.

Benefits:

• Improved reliability.
• Increased durability.
• Ability to handle the increased torque output of the stroker engine.

Important Considerations:

• Consult with a transmission specialist to determine the best course of action for your transmission.
• Consider the gear ratios of your transmission and axles to optimize performance for your intended use.
• Don't neglect the transfer case. Make sure it's in good working order.

Price Table: Estimated Upgrade Costs

Upgrade Category	Component	Estimated Cost (USD)	Notes
Fuel System	Fuel Injectors (Set of 6)	$200 - $400	Higher flowing injectors are crucial.
	Fuel Pump	$100 - $250	Walbro 255 LPH is a popular choice.
	Fuel Pressure Regulator (Adjustable)	$50 - $150	Allows fine-tuning of fuel delivery.
Ignition System	Distributor (HEI)	$150 - $300	HEI distributors offer increased spark energy.
	Ignition Coil (High Output)	$50 - $100	MSD Blaster coils are a common upgrade.
	Spark Plug Wires (High Quality)	$30 - $70	Low resistance wires are important.
Cooling System	Radiator (Aluminum)	$200 - $400	Aluminum radiators provide superior cooling.
	Electric Fan	$100 - $300	Improves cooling at low speeds.
	Water Pump (High Flow)	$50 - $150	Ensures adequate coolant circulation.
Exhaust System	Headers	$200 - $500	Larger diameter primaries improve exhaust flow.
	Catalytic Converter (High Flow)	$100 - $300	Reduces backpressure.
	Muffler (Performance)	$50 - $200	Less restrictive design enhances engine sound.
Engine Management	ECU Tuning	$300 - $800	Custom tuning is essential for optimal performance.
Transmission & Drivetrain	Transmission Rebuild/Upgrade	$500 - $2000+	Depending on the extent of the rebuild.
	Clutch (Heavy Duty)	$200 - $500	For manual transmissions.

Note: Prices are estimates and can vary depending on the brand, quality, and vendor.

Frequently Asked Questions (FAQ)

• Q: Can I build a stroker without upgrading anything?

  • A: While technically possible, it's highly discouraged. You risk reduced reliability, suboptimal performance, and potential engine damage.

• Q: What's the most important upgrade?

  • A: ECU tuning is arguably the most critical. Without proper tuning, you won't be able to realize the full potential of your stroker and may even damage your engine.

• Q: Can I do these upgrades myself?

  • A: Some upgrades, like replacing spark plugs and wires, are relatively easy. Others, like transmission rebuilds and ECU tuning, are best left to professionals.

• Q: How much will a complete stroker build cost?

  • A: The total cost can vary widely depending on the quality of parts, the extent of the upgrades, and whether you do the work yourself or hire a professional. Expect to spend anywhere from $3,000 to $8,000 or more.

• Q: What is the best stroker kit to buy?

  • A: The "best" kit depends on your budget and goals. Research different kits and read reviews before making a purchase. Common brands include Clearwater Cylinder Head, 505 Performance, and ATK.

Conclusion: A Well-Rounded Approach is Key

Building a Jeep 4.0 stroker is a rewarding project that can transform your Jeep's performance. However, it's crucial to approach the project with a well-planned upgrade strategy. By addressing the fuel system, ignition system, cooling system, exhaust system, engine management system, and drivetrain, you can ensure that your stroker engine performs reliably and delivers the power you've always dreamed of. Don't cut corners – invest in quality parts and professional tuning to unleash the true potential of your Jeep 4.0 stroker. Remember, a balanced and well-executed build will provide years of enjoyment and exhilarating performance, both on and off the road.
